DTM Batt Line

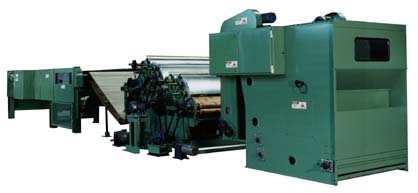

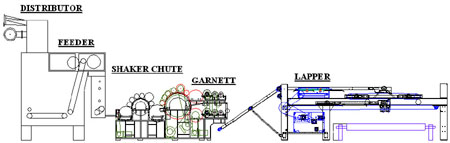

Pictured below is the machinery which lies at the heart of most Batt forming lines. The correct blend of fiber is brought to the feeder. From there it is metered into a shaker chute which distributes an even layer of fiber to the garnett. Once the fiber has been Garnetted it is cross lapped to the desired width.

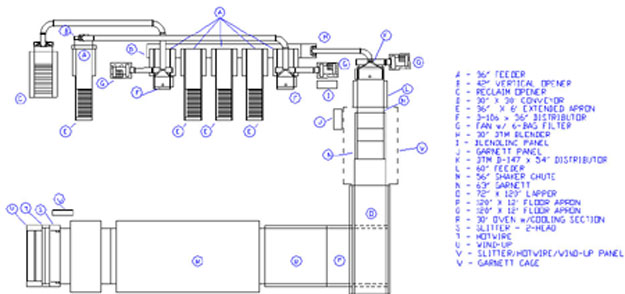

Typical plant layout
